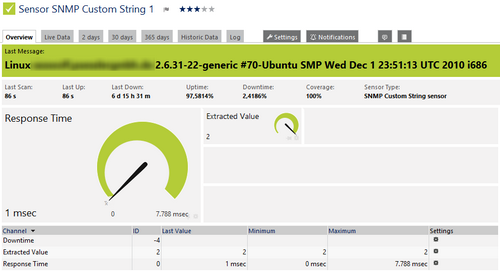

<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: SNMP Custom String Sensor

Sensor Name

Enter a meaningful name to identify the sensor. By default, PRTG shows this name in the device tree, as well as in alarms, logs, notifications, reports, maps, libraries, and tickets.

Parent Tags

Shows Tags that this sensor inherits from its parent device, group, and probe. This setting is shown for your information only and cannot be changed here.

Tags

Enter one or more Tags, separated by space or comma. You can use tags to group sensors and use tag–filtered views later on. Tags are not case sensitive. We recommend that you use the default value.

You can add additional tags to it, if you like. Other tags are automatically inherited from objects further up in the device tree. These are visible above as Parent Tags.

Priority

Select a priority for the sensor. This setting determines where the sensor is placed in sensor lists. Top priority is at the top of a list. Choose from one star (low priority) to five stars (top priority).

OID Values

OID Value

Enter the OID of the SNMP object you want to receive a string from.

Note: Most OIDs begin with 1.3.6.1. However, entering OIDs starting with 1.0, or 1.1, or 1.2 is also allowed. If you want to disable the validation of your entry entirely, add the string norfccheck: at the beginning of your OID, for example, norfccheck:2.0.0.0.1.

Maximum Length of String

Define the maximum allowed length of the string to be received from the SNMP object at the given OID. If the string is longer than this value, the sensor shows a Down status. Please enter an integer value or leave the field empty.

If Value Changes

Define what this sensor will do when the sensor value changes. You can choose between:

• Ignore changes (default): The sensor takes no action on change.
• Trigger 'change' notification: The sensor sends an internal message indicating that its value has changed. In combination with a Change Trigger, you can use this mechanism to trigger a notification whenever the sensor value changes.

Keyword Search

Response Must Include (Error State)

Define which string must be part of the data that is received from the SNMP object at the given OID. You can either enter plain text or a Regular Expression. If the data does not include the search pattern, the sensor shows a Down status. Please enter a string or leave the field empty.

For Keyword Search Use

Define in which format you have entered the search expression in the field above.

• Plain Text: Search for the string as plain text. The characters * and ? work here as placeholder, whereas * stands for no or any number of characters and ? stands for exactly one character (as known from Windows search). This behavior cannot be disabled, so the literal search for these characters is not possible with plain text search.

• Regular Expression: Treat the search pattern as a Regular Expression.

Response Must Not Include (Error State)

Define which string must not be part of the data that is received form the SNMP object at the given OID. You can either enter plain text or a Regular Expression. If the data does include the search pattern, the sensor shows a Down status. Please enter a string or leave the field empty.

For Keyword Search Use

Define in which format you have entered the search expression in the field above.

• Plain Text: Search for the string as plain text. The characters * and ? work here as placeholder, whereas * stands for no or any number of characters and ? stands for exactly one character (as known from Windows search). This behavior cannot be disabled, so the literal search for these characters is not possible with plain text search.

• Regular Expression: Treat the search pattern as a Regular Expression.

Response Must Include (Warning State)

Define which string must be part of the data that is received from the SNMP object at the given OID. You can either enter plain text or a Regular Expression. If the data does not include the search pattern, the sensor shows a Warning status. Please enter a string or leave the field empty.

For Keyword Search Use

Define in which format you have entered the search expression in the field above.

• Plain Text: Search for the string as plain text. The characters * and ? work here as placeholder, whereas * stands for no or any number of characters and ? stands for exactly one character (as known from Windows search). This behavior cannot be disabled, so the literal search for these characters is not possible with plain text search.

• Regular Expression: Treat the search pattern as a Regular Expression.

Response Must Not Include (Warning State)

Define which string must not be part of the data that is received form the SNMP object at the given OID. You can either enter plain text or a Regular Expression. If the data does include the search pattern, the sensor shows a Warning status. Please enter a string or leave the field empty.

For Keyword Search Use

Define in which format you have entered the search expression in the field above.

• Plain Text: Search for the string as plain text. The characters * and ? work here as placeholder, whereas * stands for no or any number of characters and ? stands for exactly one character (as known from Windows search). This behavior cannot be disabled, so the literal search for these characters is not possible with plain text search.

• Regular Expression: Treat the search pattern as a Regular Expression.

Extended Processing

Interpret Result as

Define the type of the received string. Choose between:

• String (default): Handle the result as common string.
• Hexadecimal bytes (as in MAC addresses): Handle the result as hexadecimal bytes. For example, choose this option when monitoring MAC addresses.
• Decimal bytes (as in IP addresses): Handle the result as decimal bytes. For example, choose this option when monitoring IP addresses.

Extract Number Using Regular Expression

Define if you want to filter out a numeric value from the string received from the SNMP object at the given OID. You can convert this into a float value to use it with channel limits (see Sensor Channels Settings).

• No extraction: Do not extract a float value. Use the result as a string value.

• Extract a numeric value using a regular expression: Use a regular expression to identify a numeric value in the string and convert it to a float value. Define below. See also the example below.

Regular Expression

This setting is only visible if you enable number extraction above. Enter a Regular Expression to identify the numeric value you want to extract from the string returned by the SNMP object at the given OID. You can use capturing groups here. Make sure the expression returns numbers only (including decimal and thousands separators). The result will be further refined by the settings below.

Index of Capturing Group

This setting is only visible if you enable number extraction above. If your regular expression uses capturing groups, please specify which one will be used to capture the number. Please enter an integer value or leave the field empty.

Decimal Separator

This setting is only visible if you enable number extraction above. Define which character is used as decimal separator for the number extracted above. Please enter a string or leave the field empty.

Thousands Separator

This setting is only visible if you enable number extraction above. Define which character is used as thousands separator for the number extracted above. Please enter a string or leave the field empty.

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel will always be displayed below the sensor's name. The available options depend on what channels are available for this sensor. Note: You can set another primary channel later by clicking on the pin symbol of a channel in the sensor's Overview tab.

Chart Type

Define how different channels will be shown for this sensor.

• Show channels independently (default): Show an own graph for each channel.

• Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This will generate an easy-to-read graph which visualizes the different components of your total traffic. Note: This option cannot be used in combination with manual Vertical Axis Scaling (available in the Sensor Channels Settings settings).

Stack Unit

This setting is only available if stacked graphs are selected above. Choose a unit from the list. All channels with this unit will be stacked on top of each other. By default, you cannot exclude single channels from stacking, if they use the selected unit. However, there is an advanced procedure to do so.

Scanning Interval

Select a scanning interval (seconds, minutes, or hours) from the list. The scanning interval determines the time the sensor waits between two scans. You can change the available intervals in the system administration.

When a Sensor Reports an Error

Define the number of scanning intervals that a sensor has time to report an error before the sensor will be set to a Down status. The sensor can try to reach a device several times, depending on the setup you can specify here, to help avoid false alarms if the monitored device has only temporary issues. For previous scanning intervals with failed requests, the sensor will show a Warning status. Choose between:

• Set sensor to "down" immediately: The sensor will show an error immediately after the first failed request.
• Set sensor to "warning" for 1 interval, then set to "down" (recommended): After the first failed request, the sensor will show a yellow warning status. If the following request also fails, the sensor will show an error.
• Set sensor to "warning" for 2 intervals, then set to "down": Show an error status only after three continuously failed requests.
• Set sensor to "warning" for 3 intervals, then set to "down": Show an error status only after four continuously failed requests.
• Set sensor to "warning" for 4 intervals, then set to "down": Show an error status only after five continuously failed requests.
• Set sensor to "warning" for 5 intervals, then set to "down": Show an error status only after six continuously failed requests.

Note: Sensors that monitor via Windows Management Instrumentation (WMI) always wait at least one scanning interval until they show an error. It is not possible to set a WMI sensor "down" immediately, so the first option will not apply to these sensor types (all other options can apply).

Note: If a sensor has defined error limits for channels, this sensor will always be set to a Down status immediately, so no "wait" option will apply.

Note: If a channel uses lookup values, the sensor will always be set to a Down status immediately, so no "wait" options will apply.

Note: Inheritance for schedules, dependencies, and maintenance windows cannot be interrupted. The corresponding settings from the parent objects will always be active. However, you can define additional settings here. They will be active at the same time as the parent objects' settings.

Schedule

Select a schedule from the list. Schedules can be used to monitor for a certain time span (days, hours) throughout the week. With the period list option it is also possible to pause monitoring for a specific time span. You can create new schedules and edit existing ones in the account settings.

Note: Schedules are generally inherited. New schedules will be added to existing ones, so all schedules are active at the same time.

Maintenance Window

Specify if you want to set-up a one-time maintenance window. During a "maintenance window" period, this object and all child objects will not be monitored. They will be in a paused state instead. Choose between:

• Not set (monitor continuously): No maintenance window will be set and monitoring will always be active.
• Set up a one-time maintenance window: Pause monitoring within a maintenance window. You can define a time span for a monitoring pause below and change it even for a currently running maintenance window.

Note: To terminate a current maintenance window before the defined end date, you can change the time in Maintenance End At field to a date in the past.

Maintenance Begins At

This field is only visible if you enabled the maintenance window above. Use the date time picker to enter the start date and time of the maintenance window.

Maintenance End At

This field is only visible if you enabled the maintenance window above. Use the date time picker to enter the end date and time of the maintenance window.

Dependency Type

Define a dependency type. Dependencies can be used to pause monitoring for an object depending on the status of another. You can choose between:

• Use parent: Pause the current sensor if the device, where it is created on, is in a Down status, or if the sensor is paused by another dependency.
• Select object: Pause the current sensor if the device, where it is created on, is in an Down status, or if the sensor is paused by another dependency. Additionally, pause the current sensor if a specific other object in the device tree is in a Down status, or if it is paused by another dependency. Select below.
• Master object for parent: Make this sensor the master object for its parent device. The sensor will influence the behavior of the device, where it is created on: If the sensor is in a Down status, the device will be paused. For example, it is a good idea to make a Ping sensor the master object for its parent device to pause monitoring for all other sensors on the device in case the device cannot even be pinged. Additionally, the sensor will be paused if the parent group of its parent device is in a Down status, or if it is paused by another dependency.

Note: Testing your dependencies is easy! Simply choose Simulate Error Status from the context menu of an object that other objects depend on. A few seconds later all dependent objects should be paused. You can check all dependencies in your PRTG installation by selecting Devices | Dependencies from the main menu bar.

Dependency

This field is only visible if the Select object option is enabled above. Click on the reading-glasses and use the object selector to choose an object on which the current sensor will depend.

Delay (Seconds)

Define a time span. After the master object for this dependency comes back to an Up status, the beginning of the monitoring of the depending objects will be additionally delayed by the time span you define here. This can help to avoid false alarms, for example, after a server restart, by giving systems more time for all services to start up. Please enter an integer value in seconds. Note: This setting is not available if you choose this sensor to be the Master object for parent. In this case, please define delays in the parent Device Settings or in the superior Group Settings.

User Group Access

Define which user group(s) will have access to the object you're editing. A table with user groups and types of access rights is shown: It contains all user groups from your setup. For each user group you can choose from the following access rights:

• Inherited: Use the access rights settings of the parent object.
• None: Users in this group cannot see or edit the object. The object neither shows up in lists nor in the device tree. Exception: If a child object is visible to the user, the object is visible in the device tree, though not accessible.
• Read: Users in this group can see the object and review its monitoring results.
• Write: Users in this group can see the object, review its monitoring results, and edit the object's settings. They cannot edit access rights settings.
• Full: Users in this group can see the object, review its monitoring results, edit the object's settings, and edit access rights settings.

You can create new user groups in the System Administration—User Groups settings. To automatically set all objects further down in the hierarchy to inherit this object's access rights, set a check mark for the Revert children's access rights to inherited option.

For more details on access rights, please see the section User Access Rights.
